What is the difference between coreless and brushless motor?
Rachel Ross
Updated on April 29, 2026

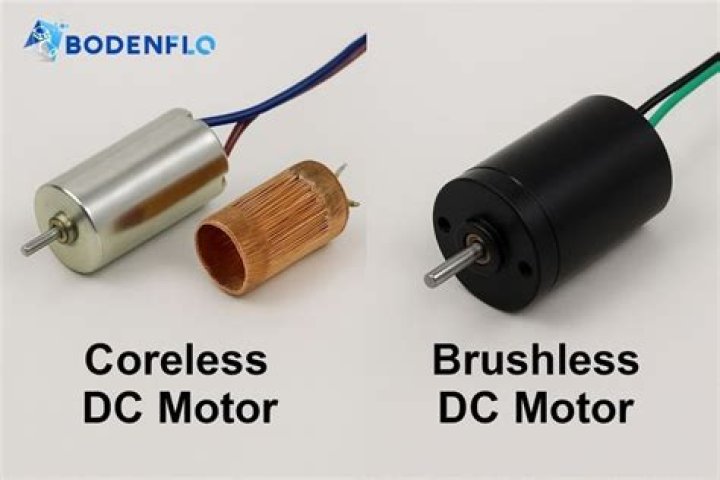

What is the difference between coreless and brushless motor?
Coreless motors have brushes and commutators, and will work with normal speed controls. Brushless motors do away with the brushes and commutator, they need special speed controls to handle the switching that is normally performed by the brushes and comm.
What is coreless stator?
A coreless stator AFPM machine has an internal stator and twin external PM rotor (Fig. 1.4d). PMs can be glued to the rotor backing steel discs or nonmagnetic sup- porting structures. Because of the absence of core losses, a coreless stator AFPM machine can operate at higher efficiency than conventional machines.
Are coreless motors brushless?
Let’s start with a definition: a coreless motor is a brushless or brushed motor with a coil wound on itself and not on iron. The winding of coreless motors has a typically “oblique” or “honeycomb” design to create a dense, self-supporting weave that is then held in place with the use of epoxy resin.
Which is better brushed or brushless?
In summary, brushless motors are better than brushed units. Users can take advantage of reduced maintenance, improved efficiency, reduced heat and noise. The brushless motors are synchronous units with one or more permanent magnets. Power tools with a brushless motor are now considered high-end products.
Are coreless motors better?
Major advantages of coreless motors include very low inertia, low mechanical time constant, and high efficiency. Because the core is ironless, its low mass allows more rapid acceleration and deceleration than any other class of dc motor.
What does coreless mean?
: not having a core.
How does a coreless motor work?
A coreless DC motor does away with the iron core in the rotor. Instead, the rotor windings are wound in a skewed, or honeycomb fashion to form a self-supporting hollow cylinder. Coreless DC motors have a rotor that is hollow and self-supporting, which reduces mass and inertia.
Is brushless worth the money?
So if you’re someone who does a fair amount of serious projects that require a drill, going with a brushless could make a lot of sense. It’ll give you higher speeds and power, and require less maintenance. But if you’re a DIYer tackling lighter projects, you may not notice much of a difference.
How long do brushless motors last?
If you are looking for a motor with a long life expectancy, consider a brushless motor. Brushed motor life is limited by the brush type and can attain 1,000 to 3,000 hours on average, while brushless motors can attain tens of thousands of hours on average, as there are no brushes to wear.
What is the price of coreless motor?
Robodo Generic CT-820×4 Coreless Motor and Propeller, 8mm X 20mm, Multi-color, Set of 4
| M.R.P.: | ₹999.00 |
|---|---|
| Price: | ₹484.00 |
| You Save: | ₹515.00 (52%) |
| Inclusive of all taxes |
How do you control a coreless motor?
Control of a coreless DC motor using a PWM and a mosfet
- Source to ground.
- Gate to PWM pin with a 10KΩ resistor to ground.
- Drain to motor terminal 1.
- Motor terminal 2 to Vcc.
- Diode placed across the motor terminals.
Is Ryobi One+ Brushless?
The RYOBI ONE+™ 18-Volt Brushless Lithium-Ion Drill/Driver and Impact Driver Kit provides corded performance with cordless convenience. The brushless impact driver delivers up to 2,000 in-lbs of torque and LED light to handle all fastening applications.
Are brushless motors better than brushed motors?
In summary, brushless motors are better than brushed units. Users can take advantage of reduced maintenance, improved efficiency, reduced heat and noise. The brushless motors are synchronous units with one or more permanent magnets.
How do power tools with a brushless motor work?
Power tools with a brushless motor are now considered high-end products. A DC motor consists of two electrical parts: the stator and the rotor. When powering the motor, it creates a magnetic interaction that sets the motor in motion. When you reverse the direction of the voltage that powers the motor, it turns in the opposite direction.
What are the different types of control algorithms used in brushless motors?
Three main types of control algorithms are used on brushless motors: trapezoidal commutation, sinusoidal commutation and vector (or field-oriented) control. Each control algorithm can be implemented in different ways depending on software coding and hardware design.
